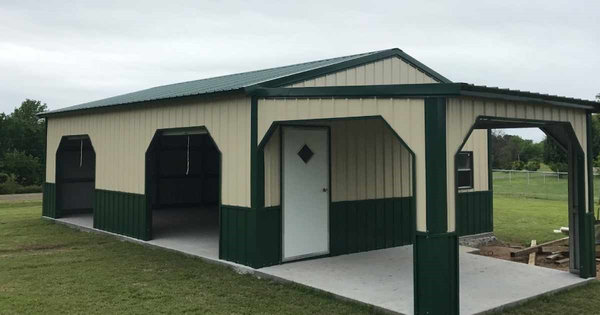

If you are planning to develop a modern age garage, carports, or a metal building home. The garage is the place you can store your belongings and park your vehicles. A new garage foundation plays a significant role in the building’s integrity above to complete the structure of any building: because a quality foundation works for many years. Concrete foundation for metal garages, metal carports, and sheds, altered to your structure’s specs. Regardless of whether it is a little factual seat for your one car garage or a high volume of concrete base for a multi-car parking garage.
Why did you choose Concrete Foundation for Your Garage, Carport, and Metal homes?
Here is the setup of the Garage Foundation, and we are starting to pour the concrete. We are going to go three loads, and we are going to go 32 yards on this job. So, I am kind of thinking my first two loads are going to go into the footing.
There are some scenarios when you should select the concrete foundation for your garages.
Load Bearing Capacity is Higher than the Other Foundation
We are going to go ahead and seal that out with the first two loads. Give that a chance to dry a few minutes before topping it off. And that will stop the Congreve from pushing out up underneath the form. So, there is not a lot of work to do at this point. Mostly just dragging the hose around and just filling up the big hole around the perimeter.
I did on the spacing of these trucks, and I got the first two back-to-back. And then I gave me about a 40-minutes pause for the cap off Nat. That way the fighting has a chance to set and it will not run out the bottom as much, though.
This is the second load here when we are working on the third load, and you can see that we topped off the stem. More on the one side, and it is holding real nicely. I have got a high point in the middle of the garage. He doubled his garage door on both sides. So, it is basically like a drive through, and there is a high point in the middle. It is 26, 24 hours. There are 24 and 26 feet wide on the inside. So, we have a 12 at 12 foot. We have a high point. So, water drains inside this garage in both directions, out the big doors as three inches of slope and 12 feet.
Build Durable Slab
We have got to pull these upright steel stakes out right now. You can get some of them out already. And I think that is probably one of the ones that I lost a last three, four footers out of the 70 that I started with. So, it was pretty good. I was just cutting them off with a grinder, three of them. So instead of four-foot steel, I ended up with three footers, and 67 four footers were all said and done. Well, I am going to leave all those 45-degree angle steaks since they are not in the concrete and hold the form there, which is suitable for the concrete slab by leaving that form.
How Concrete Foundation makes Long Lasting Structure
All the anchor bolts are pre-hung. That is required for inspection. We should pull the plastic clips that were holding them in place.
We had three quarter inch anchor bolts that were a diameter of 12 inches long, and then on each corner, we had on the door the big door openings. We had four by fours going in. And they had a side strap on those instead of like a CB 66 or something like that, and just had an anchor bolt with the side strap that had screws going into the 4×4.
If you are looking for hardscaping services in San Diego, choosing a concrete foundation is the best option to ensure the longevity and stability of your garage or metal building. Concrete has a higher load-bearing capacity compared to other foundation materials like wood or asphalt. This means that it can support heavier structures and withstand more weight over time.
We ended up edging this streamline with the hand edger on the inside. Because we knew we were going to strip it the same day and finish the inside of this curb face. However, it may be exposed depending on the detail they do on the inside of this garage when they frame it. But we wanted to strip the foreman. If you Edged, you know, you are going to form going to come away from a little bit cleaner, and it is not going to get stuck on the top and then knock a chunk of it out or whatever.
What are the Key Areas You Need to More Focused on when you build the foundation?
How much area do you want to develop your garage or structure?
How big did you get the approval from the city coordinates?
Which type of roof you like on your building
How many doors and windows did you want?
Which type of garage do you want to build?
Type of Concrete Foundation for Garage, Carports, and Homes are
Floating Concrete Foundation
In this foundation, most of the building contractors can include the excavation for metal building homes, garage foundation with 4-inch thickness concrete floor (3500PSI). The Saw cut controls joints to minimize the possibility of foundation cracking. It has 6×6 inches (6-gauge wire) wire mesh reinforcement. In this foundation, you can control the moisture with the help of a 6-mil moisture barrier. There is prepped 4inches to 5 inches clean stone under the concrete foundation. It has 12 inches deep and 10 inches wide footer.
Floating Concrete Pad
In this foundation, people can include the ground leveled with a skid loader. And four inches to five inches clean stone under the concrete pad. The thickness of this pad is 4 inches with 3500 PSI.
Monolithic Concrete Foundation (all in one pour)
Monolithic called us “all in one pour,” so the base is created in a single pour that is formed up of a durable concrete slab with more concentrated areas beneath load-supporting walls. And every perimeter side to take the place of footers. In this concrete foundation, with 4-inch thickness concrete floor(3500PSI). The Saw cut controls joints to minimize the possibility of foundation cracking. It has 6×6 inches (6-gauge wire) wire mesh reinforcement. In this foundation, you can control the moisture with the help of a 6-mil moisture barrier. There is prepped 4inches to 5 inches clean stone under the concrete foundation. It has 12 inches deep and 10 inches wide footer.
Block Foundation (Cinder Blocks)
In this foundation, people can always choose the 8 x 8 x 16 inches coal blocks piled on each other and bonded in place with a basin. This foundation creation process starts on the top of the footings, with each row forming its course. The cinder blocks are then augmented with rebar installed vertically in the holes or cells and filled with cement. This concrete has 4-inch thickness concrete floor(3500PSI). The Saw cut controls joints to minimize the possibility of foundation cracking. It has 6×6 inches (6-gauge wire) wire mesh reinforcement. In this foundation, you can control the moisture with the help of a 6-mil moisture barrier. There is prepped 4inches to 5 inches clean stone under the concrete foundation. Additionally, 8inch Masonry Block Applied to Build up to Essential Height. And the footer 8inch deep and 24 inches wide to required frost depth with 4 rebars.
Concrete Pier foundation
Concrete Pier foundation contractors can include the excavation for piers (Diameter Sizes available, 12 inches, 16 inches, 18 inches and 24 inches) with 30 inches or 36 inches deep concrete piers (3000 PSI).
